we stand on the edge of a new era of computing. generative ai is exceeding the limits of even today’s most capable hyperscale data centers. molex is at the forefront of the ai revolution with the industry’s first comprehensive portfolio of 224g solutions. let’s work together to create the data center of the future.

我们站在一个计算的新时代的边缘。生成式ai甚至已经超过了当今最有能力的超尺度数据中心的极限。molex是人工革命的前沿，拥有业界第一个全面的224g解决方案组合。让我们一起努力，创建未来的数据中心。

high-speed data center?technology we stand on the edge of a precipice representing the greatest technological shift since the emergence of the smartphone. the societal value and influence of generative artificial intelligence (ai) cannot be overstated, with the potential to reinvent industries from automotive to quantum computing and genomics. yet turning the ideas of today’s technology leaders and emerging entrepreneurs into reality requires the data center of the future. learn how molex’s industry-leading comprehensive portfolio of 224 gbps-pam4 products and custom architecture designs are enabling a new type of data center built to meet the increasing demands of ai, machine learning (ml), 1.6t networking and other high-speed applications. our team of experienced design engineers is read

高速数据中心技术我们站在悬崖的边缘，代表着自智能手机出现以来最大的技术转变。生成式人工智能（ai）的社会价值和影响不能被夸大，因为它有可能重塑从汽车到量子计算和基因组学的行业。然而，将当今的技术领袖和新兴企业家的想法变成现实，需要未来的数据中心。了解molex行业领先的224 gbps-pam4产品组合和定制架构设计如何使新型的数据中心成为可能，以满足ai、机器学习（ml）、1.6t网络和其他高速应用日益增长的需求。我们的团队由经验丰富的设计工程师来阅读

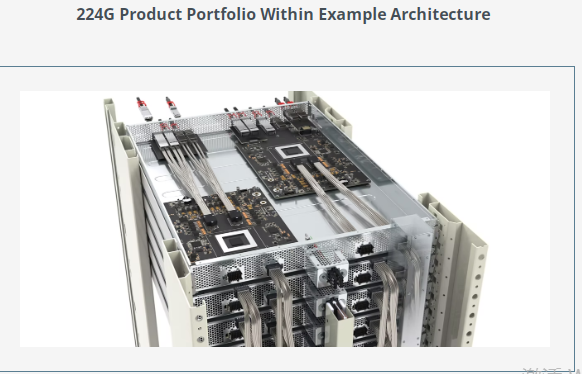

generative ai requires a paradigm shift in the approach to data. although the theme of “need more, faster” remains consistent, the supporting infrastructure of hyperscale data centers now face the limitations of physics. the exponential increase in ml and ai applications is driving a market growth trajectory that is expected to meet or exceed $2 trillion usd by 2030. such astronomical expansion is only sustained by building next generation data centers on 224 gbps-pam4 architecture.   molex’s comprehensive portfolio of 224g products has been brought to market through interdisciplinary engineering and close collaboration with our customers. this co-development has united disciplines from connectivity and data to components and signal integrity to make 224g both possible and practical. lear

生成式ai需要在数据处理方法上进行范式转变。尽管“需要更多、更快”的主题保持一致，但超尺度数据中心的支持基础设施现在面临着物理学的局限性。ml和ai应用的指数级增长正在推动市场增长轨迹，预计到2030年将达到或超过2万亿美元。只有通过224 gbps-pam4架构建设下一代数据中心。通过跨学科工程和与客户的密切合作，Molex的224g产品组合已进入市场。这种共同开发统一了从连接性、数据到组件和信号完整性的学科，使224g既可能又实用。李尔王

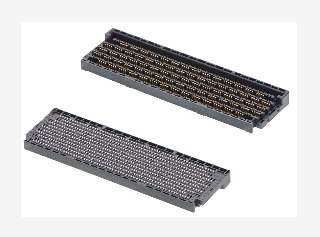

mirror mezz enhanced 224g board-to-board connector this expansion to our current family of proven, genderless high-speed mezzanine board-to-board connectors offers the performance necessary for 224g while minimizing the space taken on the pcb. the genderless mating interface and mated height options can help expedite new connector module availability, increasing efficiency while often simplifying the bill of materials (bom). the use of electrically tuned contacts and an industry standard ball grid array (bga) pcb attach improves signal integrity, eases connector assembly and provides significant

镜像mezz增强了224g板对板连接器，这扩展到我们目前的家族证明，无性别高速夹层板对板连接器提供了224g必要的性能，同时最小化pcb的空间。无性别的配对接口和交配高度选项可以帮助加快新的连接器模块的可用性，提高效率，同时经常简化材料清单（bom）。使用电调谐触点和工业标准球栅阵列（bga）pcb连接提高了信号的完整性，简化了连接器的组装，并提供了重要的

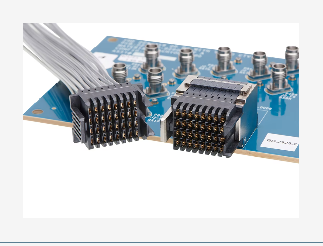

inception 224g genderless backplane and cable the inception family of genderless backplanes and cables enable superior application flexibility with variable pitch densities, optimal signal integrity and simplified integration. the simplified smt launch reduces the need for complicated board drill and via processing at the pcb interface. the multiple wire gauge options can be partnered with custom lengths internal and external to the application for optimized channel performance.

初始224g无基因背板和电缆的初始家族具有优越的应用灵活性，可变的螺高密度，最佳的信号完整性和简化的集成。简化的smt发射减少了对复杂的板钻和通过在pcb界面进行处理的需要。多个线规选项可以与应用程序内部和外部的自定义长度合作，以优化通道性能。

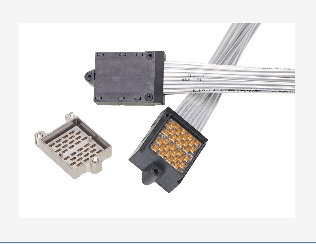

cx2 dual speed 224g near-asic connector-to-cable with the benefit of screw engagement after mating, these 224g compatible connectors ensure full seating every time while transferring the mating force to the screws rather than the contact interface. in addition to the integrated strain relief, a reliable mechanical wipe and fully protected, thumb-proof mating interface ensure long term reliability while minimizing risk of pin damage. finally, high performance twinax and an innovative shielding structure provide superior tx/rx isolation.

cx2双速224g近轴连接器到电缆，配合后螺钉接合，这些224g兼容连接器确保每次完全座位，同时将配合力转移到螺钉而不是接触接口。除了集成的应变缓解，可靠的机械擦拭和充分保护，拇指防配合界面确保长期的可靠性，同时最大限度地减少针损坏的风险。最后，高性能的双轴制成和创新的屏蔽结构提供了优越的tx/rx隔离。

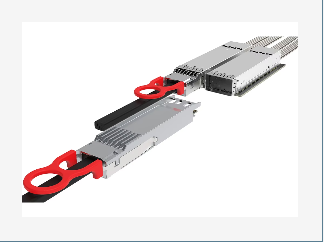

osfp 1600 solutions this next-generation upgrade to our current osfp product family includes smt, bipass and external cable solutions. built for 224 gbps-pam4, these robust cables offer superior mechanical durability and excellent shielding to minimize crosstalk and deliver better signal integrity (si) performance at a higher nyquist frequency.  smt connector and cage: superior shielding from the mating interface to the sme tails and board ensures 224 gbps channel operation and lower bit error rate (ber).  bipass: standardized twinax that combines i/o with near-asic and backplane solutions provide greater design flexibility.   direct attach (dac) and active electrical cables (aec): multiple cable configurations, optimized wire termination and cmis support for system troubleshooting t

osfp 1600解决方案这一下一代升级到我们目前的osfp产品系列包括smt、双通和外部电缆解决方案。为224 gbps-pam4，这些坚固的电缆提供优越的机械耐久性和优良的屏蔽，最小化串扰，并在更高的尼奎斯特频率下提供更好的信号完整性（si）性能。smt连接器和笼：从配合接口到sme尾翼和板的高级屏蔽，确保224 gbps通道运行和更低的误码率（ber）。双通：标准化的双轴，结合i/o与近亚洲和背板解决方案，提供更大的设计灵活性。直接连接（dac）和主动电缆（aec）：多种电缆配置，优化的电线终端和cmis支持的系统故障排除t

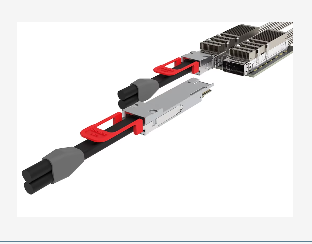

qsfp 800 & qsfp-dd 1600 solutions like our osfp product family, our upgraded qsfp and qsfp-dd products are designed for 224 gbps-pam4 and offer excellent shielding to minimize crosstalk and improve performance at a higher nyquist frequency. the family has been re-engineered to improve mechanical robustness including contact normal force, and encompasses smt, bipass and external cable solutions.  smt connector and cage: ensure 224 gbps channel operation and lower bit error rates (ber) with these durable solutions offering superior shielding.   bipass: reduce thermal load, lower rack costs and increase design flexibility with our bipass solutions that utilize standardized twinax combining i/o with near-asic and backplane solutions.   direct attach (dac) and active electrical cables (ae

像我们的osfp产品系列，我们的qsfp升级的qsfp和qsfp-dd产品设计为224gbps-p-pam4，提供良好的屏蔽，以最小化串扰和在更高的尼奎斯特频率下提高性能。该系列已经被重新设计，以提高机械的鲁棒性，包括接触法向力，并包括smt、双通和外部电缆解决方案。smt连接器和保持架：通过这些耐用的解决方案，确保224 gbps的通道操作和更低的误码率（ber）。双通：通过我们的双通解决方案，降低热负荷，降低机架成本和增加设计灵活性。直接连接（dac）和主动电缆(ae

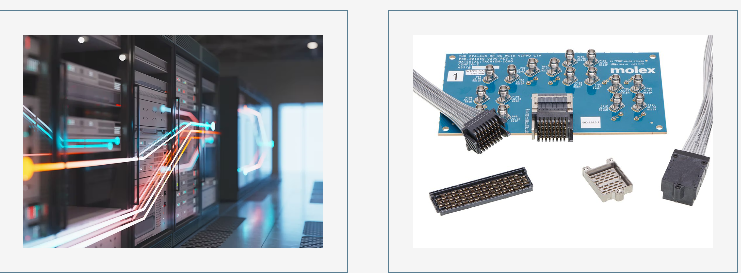

at the inflection point: harnessing the power of 224 gbps-pam4 generative ai and applications like digital twins are driving the need for a new generation of data centers. find out how molex collaborated with key customers on its 224g portfolio, and how co-development provides a peek at what’s beyond the hyperscale data center.  data center storage molex unveils first-to-market chip-to-chip 224g product portfolio encompassing next-gen cables, backplanes, board-to-board connectors and near-asic connector-to-cable solutions operating at speeds up to 224 gbps-pam4, this product portfolio is uniquely positioned to meet heightened demands for the fastest available data rates powering advanced technology, including generative ai, machine learning (ml), 1.6t networking and other high-speed ap

转折点是：利用224 gbps-pam4生成ai的能力和数字双胞胎等应用程序正在推动对新一代数据中心的需求。了解molex如何在其224g产品组合中与关键客户合作，以及合作开发如何提供对超规模数据中心之外的了解。数据中心存储molex公布首次上市芯片对芯片224g产品组合包括下一代电缆、背板、板对板连接器和近连接电缆解决方案操作速度高达224 gbps-pam4，这个产品组合是独特的定位，以满足高需求最快的可用的数据速率提供先进技术，包括生成ai，机器学习（毫升），1.6t网络和其他高速美联社
